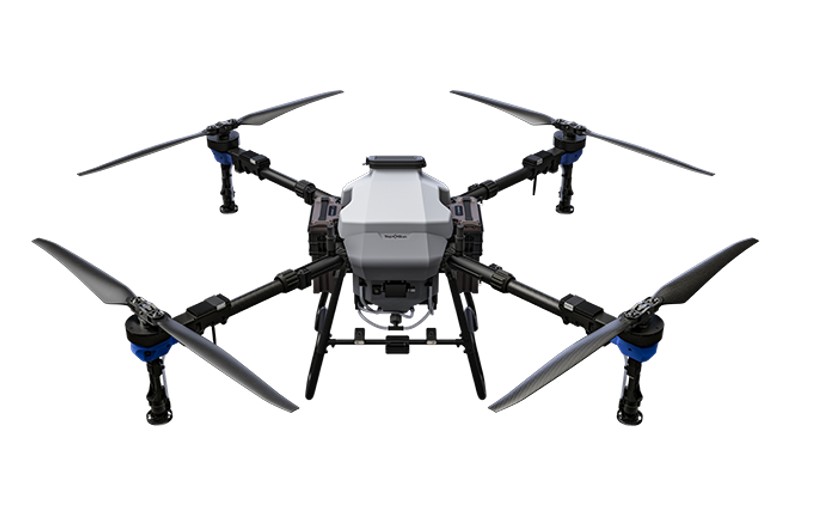

TOPXGUN FP700
Professional Agricultural Spray and Spreading Drone
The TOPXGUN FP700 is a versatile agricultural drone designed for high-efficiency spraying, spreading, and mapping across modern farming operations. Built for reliability and precision, the FP700 combines strong payload capacity, intelligent flight control, and advanced sensing systems to help operators cover more acres with confidence.
With a 16 gallon spray tank, 21 gallon spreading system, and 154 lb payload capacity, the FP700 delivers the performance needed for crop protection, fertilizer application, and precision agriculture workflows.
High Efficiency Spraying System
The FP700 features a redesigned spraying system built to deliver precise, uniform coverage across large fields and orchards.
Rear-mounted four centrifugal nozzles provide consistent atomization and wide coverage while maintaining stable flow during flight.
Key spraying features include:
• Maximum 40 L/min flow rate
• Spray accuracy within 5% deviation
• Adjustable droplet size 30–500 μm
• Single-side spraying capability for precise field-edge application
Precision Spreading System
The FP700 supports granular spreading using the SP6 centrifugal spreader with a dual roller discharge system designed for controlled, uniform distribution.
Key spreading capabilities include:
• 220 kg/min maximum discharge speed
• Up to 33 ft spreading width
• Compatible with fertilizer, rice seed, rapeseed, bait, and granular materials
Three roller configurations allow operators to adjust output depending on material type and field conditions. For crop monitoring and vegetation analysis, operators often pair spray platforms with the DJI Mavic 3 Multispectral drone.
Advanced Obstacle Avoidance
The FP700 integrates automotive-grade 4D radar technology to improve environmental awareness and flight safety.
The sensing system provides:
• 150 m detection range
• Reliable obstacle detection even for small objects
• Stable braking at flight speeds up to 13.8 m/s
Combined with terrain scanning and point-cloud imaging, the system helps maintain smooth flight across complex field layouts.
Agri Assistant Flight App
The FP700 works with the Agri Assistant control platform, designed to simplify drone operations for both experienced pilots and new operators.
Features include:
• Intuitive user interface for mission planning
• Multiple operational modes for different application scenarios
• Night mode with full-color FPV for low-light visibility
The platform enables efficient route planning and repeatable field missions.
Power System
The FP700 operates using a dual-battery system designed for extended flight performance and operational continuity.
Power system features include:
• Two 20 Ah batteries with mutual backup
• 9000W dual-channel air-cooled charger
• Fast charging to support continuous operations
This configuration helps reduce downtime and maintain productivity throughout the workday.
Flight Control and Durability
The FP700 uses a self-developed flight control system designed specifically for agricultural operations.
Key reliability features include:
• IP67 protection rating against water, dust, and chemical exposure
• Modular design for fast maintenance and servicing
• Built-in UPS backup system to eliminate downtime during battery swaps
• Multiple redundant safety systems
These features help ensure consistent operation even in demanding agricultural environments.
Built for Modern Agricultural Operations
The TOPXGUN FP700 provides a flexible solution for operators who need one drone platform capable of handling multiple agricultural workflows.
From crop protection spraying to fertilizer spreading and field mapping, the FP700 is designed to deliver reliable performance, high efficiency, and precise application across a wide range of farming environments.
Operators comparing agricultural spray drones may also want to review the Talos T60X drone, Lyno Dynamic LD220 drone, and DJI Agras T100 drone to evaluate different payload capacities and field coverage capabilities.
