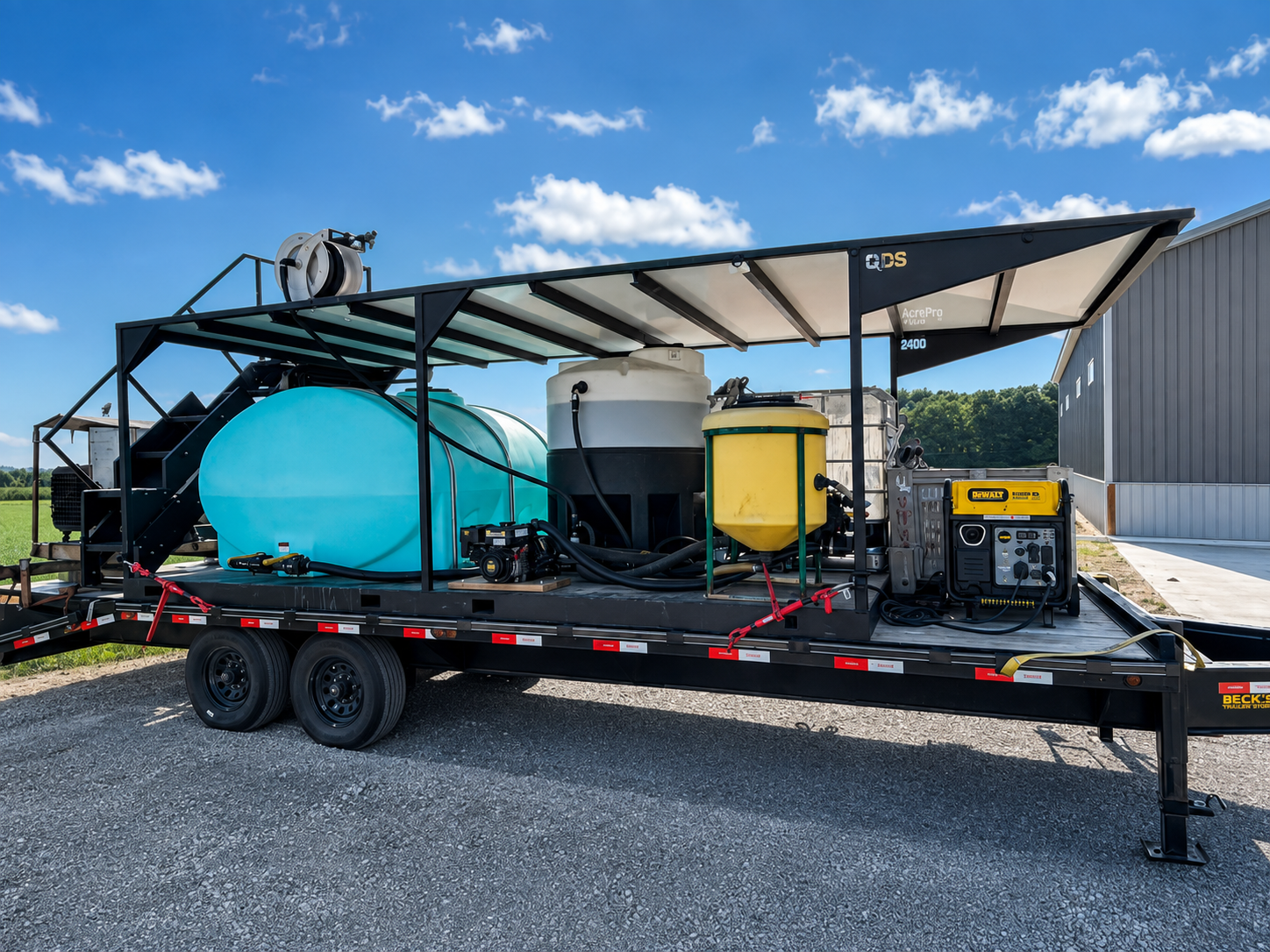

QDS AcrePro™ Agricultural Drone Trailer Skid

A Complete Mobile Drone-Operations Platform

The QDS AcrePro provides agricultural drone operators with a stable, elevated working platform that keeps aircraft and operating equipment organized, accessible and ready for deployment.

Its low-profile design helps maintain a practical overall transport height, allowing most agricultural drones to remain secured on the flight deck during transport without removing the aircraft or folding down the railing system.

Arrive at the field, lower the staircase, prepare the aircraft and get to work.

Exclusive One-Piece QDS Flight Deck

At the heart of the AcrePro is an 8-foot by 22-foot elevated QDS fiberglass composite flight deck.

Unlike multi-section or assembled deck systems, the AcrePro uses an exclusive one-piece deck construction designed to provide a strong, lightweight and consistent operating surface.

An aggressive slip-resistant coating provides secure footing in wet, muddy and demanding field conditions.

Flight Deck Features

• 8′ × 22′ elevated flight deck
• Exclusive one-piece QDS fiberglass composite construction
• Lightweight, high-strength design
• Aggressive slip-resistant surface
• 64-inch deck height
• Integrated folding safety railing system
• Space for transporting, preparing, launching and recovering agricultural drones

Heavy-Duty Steel Skid Construction

The AcrePro is built around a fully welded steel frame engineered for commercial field use.

An industrial powder-coated finish provides long-term corrosion resistance, while the diamond plate steel base creates a durable mounting surface for tanks, pumps, generators, battery systems and other operating equipment.

Steel Platform Features

• Heavy-duty welded steel frame
• Industrial powder-coated finish
• 8′ × 16′ steel base platform
• Diamond plate steel equipment surface
• Built-in chemical and railing storage box
• Four integrated D-ring tie-down points
• Integrated forklift pockets
• Manufactured in Michigan, USA

Safe and Convenient Deck Access

A fold-down staircase with integrated safety handrails provides easy access to the elevated flight deck.

The staircase lowers to ground level during operation and folds securely into position for transport. The integrated railing system provides additional protection while operators are working around aircraft and equipment.

Access and Safety Features

• Full fold-down staircase
• Integrated staircase handrails
• Folding perimeter railing system
• Slip-resistant deck coating
• Elevated platform for easier aircraft loading and unloading
• Compact transport configuration

Transport Your Drone Ready for Deployment

The AcrePro’s 64-inch deck height and low-profile design help keep the complete system within a practical transport height.

For most agricultural drone configurations, the aircraft can remain secured on the flight deck during transport. This reduces unnecessary loading, unloading and aircraft handling at every field.

That means less setup time, less physical strain and faster deployment when you arrive at the jobsite.

Removable Skid Design

The AcrePro is secured to the trailer using four integrated D-ring tie-down points and can be installed or removed using its built-in forklift pockets.

Once removed, the trailer can be used for hauling equipment, materials or other loads during the off-season.

This gives operators the benefits of a specialized agricultural drone trailer without permanently dedicating the trailer to a single purpose.

One Trailer. Multiple Uses.

• Install the AcrePro for spray season
• Remove it when drone operations slow down
• Return the trailer to regular commercial or agricultural use
• Store the complete skid as a self-contained operating platform

Optional Four-Corner Jack System

The AcrePro can be equipped with an optional four-corner receiver system for removable leveling jacks.

Reese-style receiver mounts allow the jacks to be installed at each corner of the skid, making it possible to raise, lower, load, unload and store the AcrePro without requiring a forklift.

Optional Jack-System Features

• Four corner-mounted removable jacks
• Reese-style receiver mounts
• Allows skid installation and removal without a forklift
• Supports convenient loading and unloading
• Simplifies off-season storage
• Helps stabilize and level the skid when required

QDS AcrePro™ Specifications

Product: QDS AcrePro™ Trailer Skid
Steel base platform: 8′ × 16′
Elevated flight deck: 8′ × 22′
Deck height: 64 inches
Frame: Heavy-duty welded steel
Base surface: Diamond plate steel
Flight-deck material: One-piece fiberglass composite
Deck surface: Aggressive slip-resistant coating
Finish: Industrial powder coating
Access: Fold-down staircase with safety handrails
Safety system: Integrated folding railings
Storage: Built-in chemical and railing storage box
Tie-down system: Four integrated D-ring mounting points
Handling: Integrated forklift pockets
Manufacturing location: Michigan, USA
Optional equipment: Four-corner removable leveling-jack system

Built for Professional Agricultural Drone Operators

The QDS AcrePro is designed for operators who need more than a basic trailer.

It provides a purpose-built mobile platform for transporting aircraft, organizing equipment, preparing for flights and operating efficiently in demanding agricultural environments.

Whether you operate a single agricultural drone or manage multiple crews, the AcrePro gives you a safer, more professional and more efficient way to take your operation into the field.

Take Your Drone Operation to the Next Level

Contact Quantum Drone Systems to learn more about the QDS AcrePro, available configurations, optional equipment, pricing and delivery.

Quantum Drone Systems
Purpose-built equipment for professional agricultural drone operations.
